ThermaRoc Blocks & Pipe Clamps

Select Options:
Technical Data:
PDF
1131 MIDFIX ThermaRoc Pipe Supports PDS
[259.2Kb]
PDF
1131 MIDFIX ThermaRoc Pipe Supports PDS
[259.2Kb]

Features & Applications

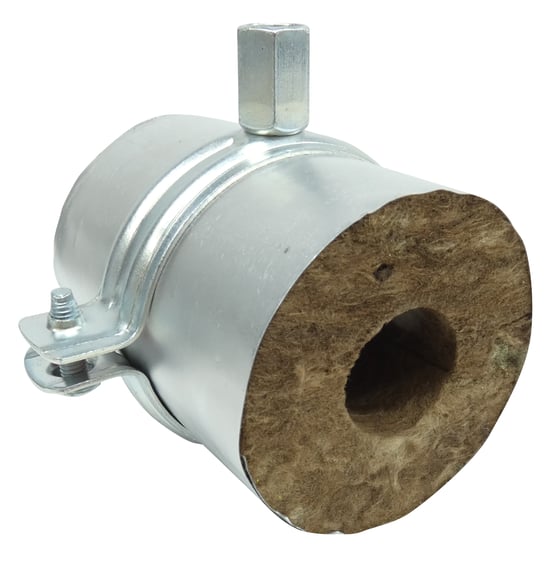

• MIDFIX ThermaRoc pipe supports

• Supplied with MIDFIX Qwikclamp pipe clamps.

• High density non-combustible mineral wool

• Foil faced vapour barrier

• Good load-bearing capacity

• Effective insulation to minimise thermal bridging










Manufactured from high-density mineral wool with a high load bearing capacity for supporting pipework. It provides effective insulation to prevent thermal bridging and heat loss or gain to the pipework through the pipe support. Non-combustible, have a vapour control foil face, and are a robust product ideal for rough handling on site. Wide range of pipe sizes and insulation thicknesses combined with the corresponding size of Qwikclamp pipe clamp.


THERMAROC TECHNICAL DATA

• Pipe diameter range: 15 – 210mm O.D.

• Insulation thickness: 20 – 100mm

• Insulation length: 80 – 100mm

• Material: 200kg/m³ high density stone wool

• Pipework service temperature: 0°C - 250°C • Foil service temperature: ≤ 80°C

• Fire Performance: Manufactured from non-combustible stone wool with A2L-s1, d0 reaction to fire classification

• Water absorption: ≤ 1 kg/m² • Melting point of fibres: ≥ 1000°C
