Phenblox & Pipe Clamp

More info

Select Options:

Technical Data:

PDF

1134 MIDFIX Phenblox Pipe Supports PDS

[341.9Kb]

Features & Applications

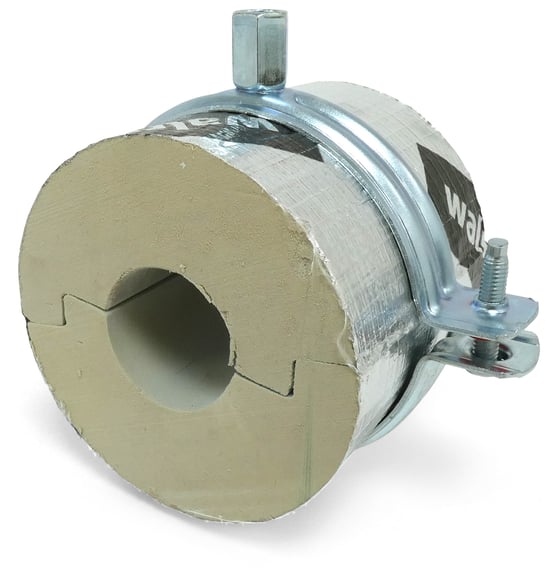

Phenblox pipe supports combine closed-cell phenolic foam with MIDFIX Qwikclamp pipe clamps. They have a foil-faced vapour barrier and suit hot and chilled pipework. Pipe materials include copper, steel, stainless steel and plastic. Technical data gives material density and insulation thickness by size. Match the support to the pipe outside diameter and insulation thickness.

PHENBLOX TECHNICAL DATA

• Material: CFC/HCFC-free closed cell phenolic foam

• Material Density: < 111mm OD pipe = 60 kg/m³; 111 to 169mm OD pipe = 80 kg/m³; >170 mm OD pipe = 120 kg/m³

• Thermal Conductivity: (at 10°C for cylindrical test specimen) 60kg/m³ = 0.030 W/(m-K); 80 & 120kg/m³ = 0.037 W/(m-K) Values for other temperatures are provided in the relevant Declaration of Performance

• Pipework Operating Temperature: -50°C to +110°C

• Length of Supports: < 168mm OD Pipe = 90mm; ≥ 168mm OD Pipe = 125mm

• Metal Spreader Plate: on one half of Phenblox on pipe diameters ≥54m
