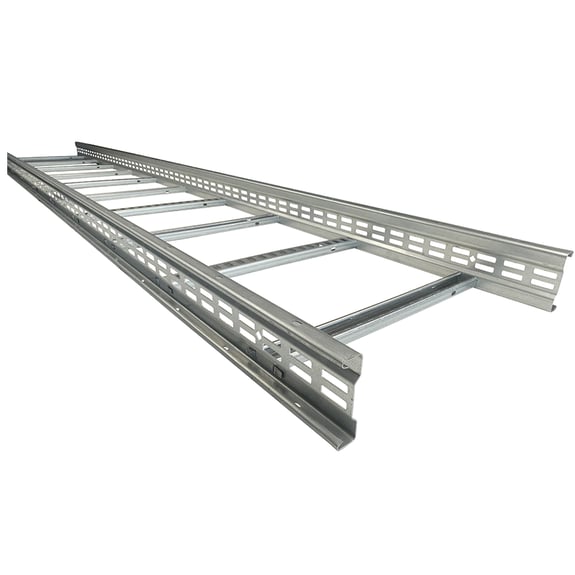

PL125 Cable Ladder Lengths - Pre-Galvanised

125mm deep heavy duty cable ladder system. Robust swaged construction with pre-galvanised

finish ideally suited for indoor applications and commonly used in data centres. Manufactured

in 3.0m lengths as standard and 6.0m lengths to order in a range of widths up to 900mm.

Key benefits of the Speedway system are the special profiled side walls for extra strength and

rigidity and the integrated couplers on all fittings for quicker installation with reduced fixings.

Ladder rungs are strut channel profile for use with standard channel components and are

spaced at 300mm intervals.

Pre-galvanised cable ladder is manufactured from zinc coated steel coil. This differs from

galvanised cable ladder which is manufactured from uncoated steel and galvanised after

manufacture (post-galvanised). Both are hot dip galvanising processes. Pre-galvanising has a

thinner and smoother finish suited to indoor or lower corrosion environments. An advantage with

pre-galvanised ladder is the absence of zinc flakes which can be present in holes and apertures

with post-galvanised finishes. For this reason it is usually the preferred choice for data centres.

Features

• 125mm special profile side section for extra strength and rigidity

• Slotted sides allow ladder to be cut and joined without drilling

• Pre-punched holes for earth bonding straps

• Channel profile ladder rungs for use with channel nuts and all types of cable cleats

• Ladder rungs alternately inverted permitting fixing from the underside if required

• Integrated couplers on all fittings for quicker installation

• Smooth pre-galvanised finish

Product Standard

Manufactured and tested according to BS EN 61537

Product Data

Material: Pre-galvanised structural steel to BS EN 10346

Minimum Yield Stress: 280N/mm²

Height: 125mm

Nominal Widths: 150 – 900mm

Length: 3.0m standard (6.0m to order
