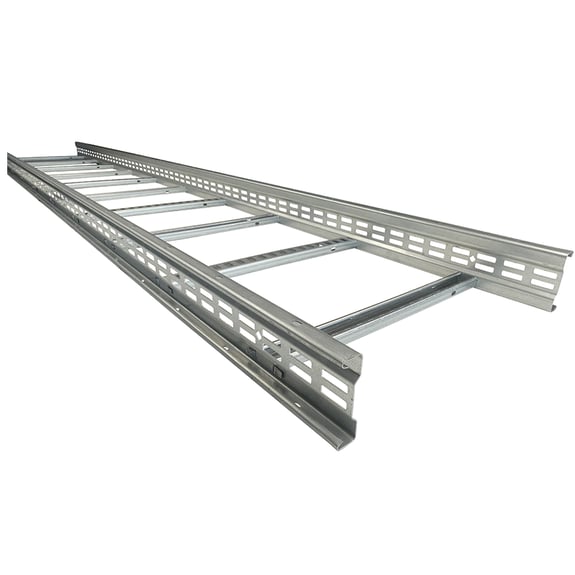

PL100 Cable Ladder Lengths - Pre-Galvanised

100mm deep medium duty cable ladder system. Robust swaged construction with pre-galvanised finish ideally suited for indoor applications and commonly used in data centres.

Manufactured in 3.0m lengths as standard and 6.0m lengths to order in a range of widths

up to 900mm. Key benefits of the Speedway system are the special profiled side walls for

extra strength and rigidity and the integrated couplers on all fittings for quicker installation

with reduced fixings. Ladder rungs are strut channel profile for use with standard channel

components and are spaced at 300mm intervals.

Pre-galvanised cable ladder is manufactured from zinc coated steel coil. This differs from

galvanised cable ladder which is manufactured from uncoated steel and galvanised after

manufacture (post-galvanised). Both are hot dip galvanising processes. Pre-galvanising has a

thinner and smoother finish suited to indoor or lower corrosion environments. An advantage with

pre-galvanised ladder is the absence of zinc flakes which can be present in holes and apertures

with post-galvanised finishes. For this reason, it is usually the preferred choice for data centres.

Features

• 100mm special profile side section for extra strength and rigidity

• Slotted sides allow ladder to be cut and joined without drilling

• Pre-punched holes for earth bonding straps

• Channel profile ladder rungs for use with channel nuts and all types of cable cleats

• Ladder rungs alternately inverted permitting fixing from the underside if required

• Integrated couplers on all fittings for quicker installation

• Smooth pre-galvanised finish

Product Standard

Manufactured and tested according to BS EN 61537

Product Data

• Material: Pre-galvanised structural steel to BS EN 10346
• Minimum Yield Stress: 280N/mm²
• Height: 100mm
• Nominal Widths: 150 – 900mm
• Length: 3.0m standard (6.0m to order)
