MIDFIX Qwikclamp - Unlined

More info

Select Options:

Technical Data:

PDF

1105 MIDFIX Qwikclamp - Unlined PDS

[256.9Kb]

Features & Applications

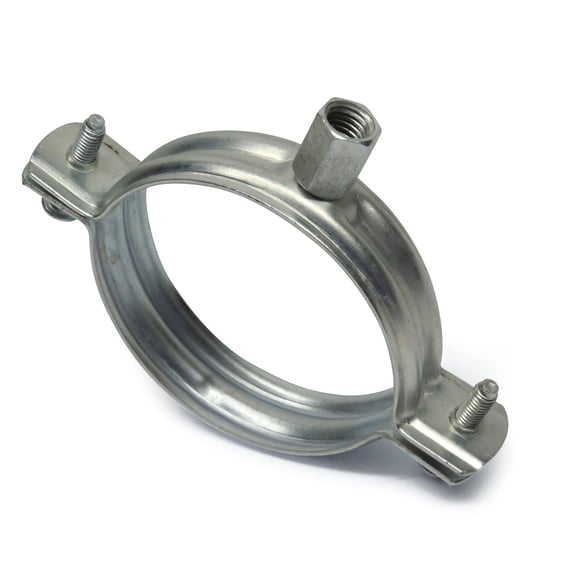

Unlined Qwikclamps are two-piece electro-zinc-plated steel pipe clamps with ribbed profiles and welded bosses. Bosses have M8/M10 dual-tapped threads. Hexagon combi-drive screws tighten the clamps. The 24 variants suit pipe outside diameters from 15-20mm to 245-254mm. Each size has a QU product code and a listed box quantity. Steel sizes are listed from 3/8 inch to 8 inches.

Applications

Qwikclamps are designed for supporting medium load pipework

in building services installations. Unlined Qwikclamps are used

with phenolic, Rockwool and wooden pipe support blocks for

supporting insulated pipes and with uninsulated steel and plastic

drainage pipes. Qwikclamps are recommended for internal use

and tested for supporting static pipe loads in tension.

Features

• Material: Steel

• Finish: Electro Zinc Plated - 8μm minimum coating thickness

• M8/M10 Welded Boss

• Screws: Hexagon head with combi drive fitted with plastic retaining

washers – for use with hex, Philips or slotted drivers

• Product Identification: Stamped with MIDFIX QWIKCLAMP

• Loads: Tested for safe static tensile loads – see product table for loads.
