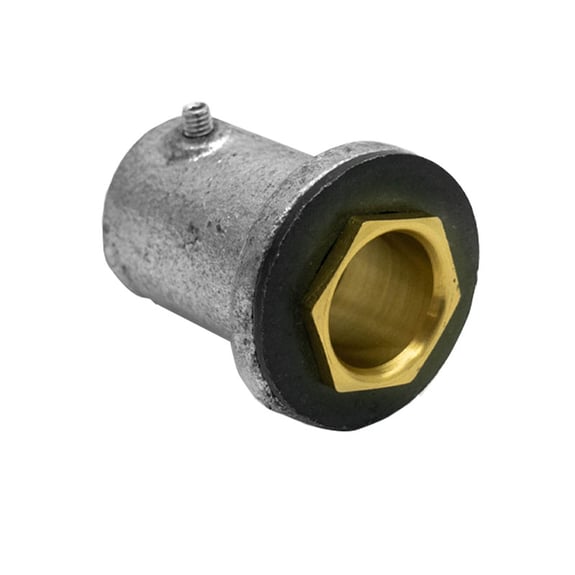

Conlok® Galvanised Flanged Couplers

Conlok® Galvanised Flange Couplers. Hot dip galvanised and available for 20 and 25mm conduit.

Unthreaded for use with standard galvanised conduit tube. Unique grub screw locking - no need to thread conduit .

Features:

• 20mm & 25mm options available
• Conforms to BS EN 61386-21:2004 (Conduit Systems for Cable Management - Rigid Conduit Systems)
• Simply use M4 grub screws (supplied).
• Manufactured in accordance with the Low Voltage Directive 2014/3/EU

Benefits:

• All Conlok products are IP30 (Ingress protection) rated - meeting the same rating as traditional conduit systems
• Tensile force of 100N and 500N (heavy & medium grade) was applied for 2 minutes, the samples remained properly assembled to the conduit.
• Suspended load test: when a load of 450N was applied for 48 hours, the samples passed due to there being no cracks nor deformation to the conduit.
• There is no need for threading machines & associated electrical equipment (transformer/leads)
• No need for threading oil
• No metal filings (from threading) to clear up/dispose of.
