AB219 MX Channel Angle Brackets - 45 Degree AB219 MX Channel Angle Brackets - 45 Degree
AB219 MX Channel Angle Brackets - 45 Degree AB219 MX Channel Angle Brackets - 45 Degree

AB219 MX Channel Angle Brackets - 45 Degree

MX AB219 Angle Bracket Product Data Sheet





More info

BOX QTY:
100
Code:
AB219
MF Code:
1327219
Technical Data:
PDF
MX-Technical-Book-V32-1-1-May-30-2023-06-09-08-9926-AM
[4.1MB]
PDF
1327219 MIDFIX MX AB219 Angle Bracket PDS
[199.2Kb]

Features & Applications

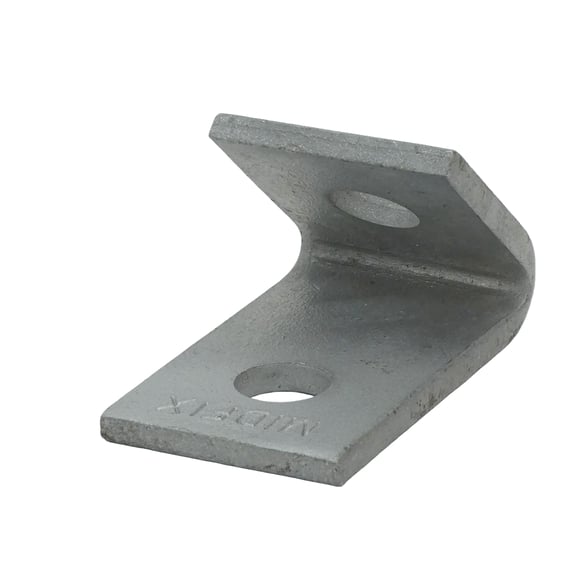

AB219 is an internal 45-degree hot-dip-galvanised steel bracket with a 1 + 1 hole configuration for channel-to-channel connections. It is part of the MX channel system and carries the MIDFIX stamp. AB219 is load rated with MX channel profiles. A product data sheet is available for this bracket. The hole arrangement and angle suit the internal connection described for the MX system.
