HS41 41x41x2.5 MX Slotted Channel HS41 41x41x2.5 MX Slotted Channel
HS41 41x41x2.5 MX Slotted Channel HS41 41x41x2.5 MX Slotted Channel

HS41 41x41x2.5 MX Slotted Channel



More info

Select Options:
Technical Data:
PDF
1303441 MIDFIX MX HS41 Channel PDS
[313.4Kb]

Features & Applications

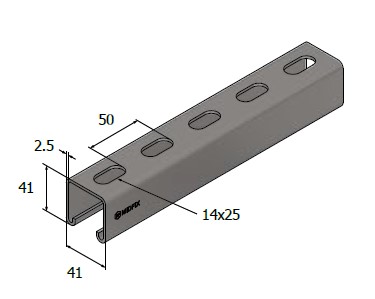

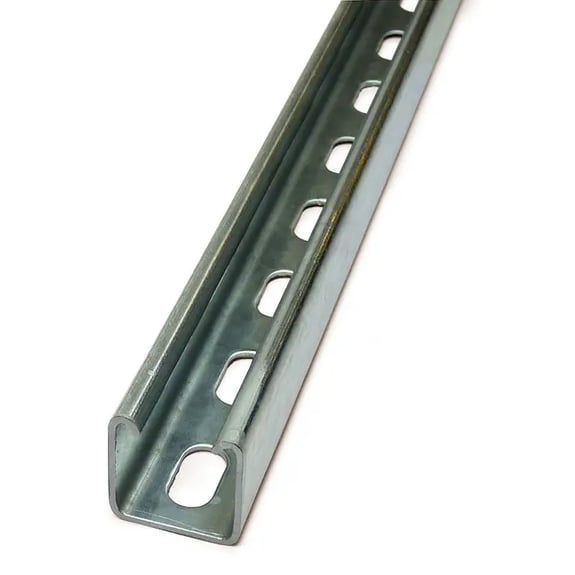

41x41x2.5mm slotted channel profile manufactured to BS 6946:1988 and marked at regular intervals with the MIDFIX name and BS number as required by the standard. Pre-galvanised finish made from continuously hot-dip zinc coated steel conforming to BS EN 10346:2009. S280GD material for maximum load bearing capacity. A channel of the MIDFIX MX support system identifiable by the MIDFIX stamp. MX channel is comprehensively load rated for use as a tested support system in conjunction with MX components.










Designed for making a wide range of brackets, frames and structures for building services supports and other industrial support applications. Pre-galvanised finish is suitable for use in all normal indoor environments and can be used in some external environments depending on the required life expectancy.
