Hexagon Head - For Thin Sheets 0.8-2.5mm - Self Drilling Screws

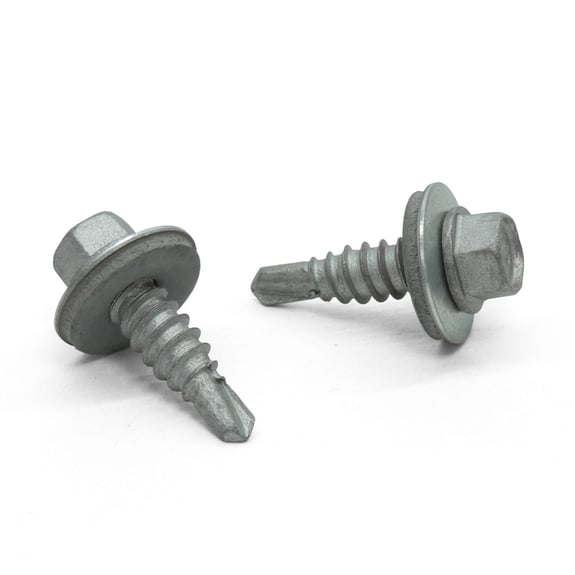

Hexagon head screws with self-drilling point and bonded EPDM

washer for stitching cladding panels and thin sheet fixing. 6.3mm

diameter with coarse thread and reduced TEK 2 point for good

retention in steel thicknesses from 0.8 – 2.5mm. Tough three-stage

zinc-ceramic coating for superior corrosion resistance.

Installation

1. Screws should be installed using a Tek screwdriver or cordless

drill with adequate power and a drilling speed of between 1500

– 2500 rpm. (IMPORTANT - Impact screwdrivers will damage

the threads and must not be used)

2. Use a 5/16" socket to install the screw perpendicularly into the

steel maintaining steady pressure without forcing the tool.

3. Stop inserting the screw as soon as the compression disc of the

bonded washer changes from convex to flat. Overtightening the

screw is liable to damage the thread particularly in thin steel.

Product Data

Material: SAE C1022 Carbon Steel

Finish: Zinc ceramic – 500-hour salt spray resistance

Head: 5/16" hexagon washer type

Steel Drilling Thickness: 0.8 – 2.5mm

Washer: 16mm diameter – 1.0mm thick galvanised steel with

2.0mm thick EPDM gasketwith 2.0mm thick EPDM gasket
