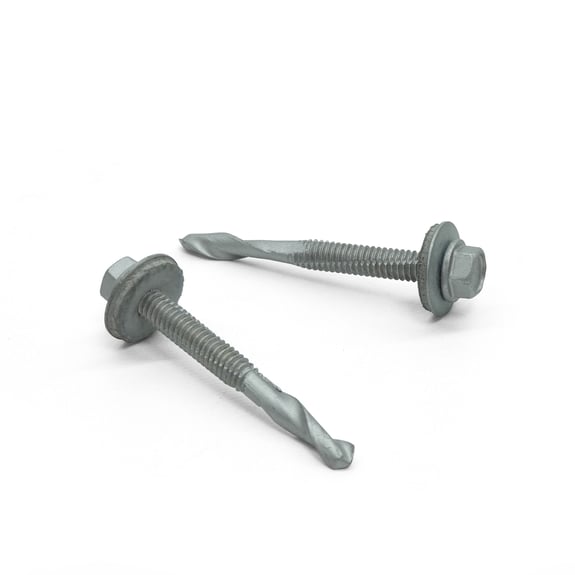

Hexagon Head - For Extra Heavy Steel up to 22mm - Self Drilling Screws

Hexagon head screws with self-drilling spiral point and bonded

EPDM washer for general fastening applications to thicker structural

steel sections. Fine thread and TEK 7 spiral point suitable for steel

thicknesses from 4.0 – 18.5mm. Tough three-stage zinc-ceramic

coating for superior corrosion resistance.

Installation

1. Screws should be installed using a Tek screwdriver or cordless

drill with adequate power and a drilling speed of between 1500

– 2500 rpm. (IMPORTANT - Impact screwdrivers will damage

the threads and must not be used)

2. Use a 5/16" socket to install the screw perpendicularly into the

steel maintaining steady pressure without forcing the tool.

3. Stop inserting the screw as soon as the compression disc of the

bonded washer changes from convex to flat.

Product Data

Material: SAE C1022 Carbon Steel

Finish: Zinc ceramic – 1000-hour salt spray resistance

Head: 5/16" hexagon washer type

Steel Drilling Thickness: 4.0 - 18.5mm

Washer: 16mm diameter – 1.0mm thick galvanised steel with

2.0mm thick EPDM gasket
